Chipset | AMD® B850 |
CPU Support | Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |

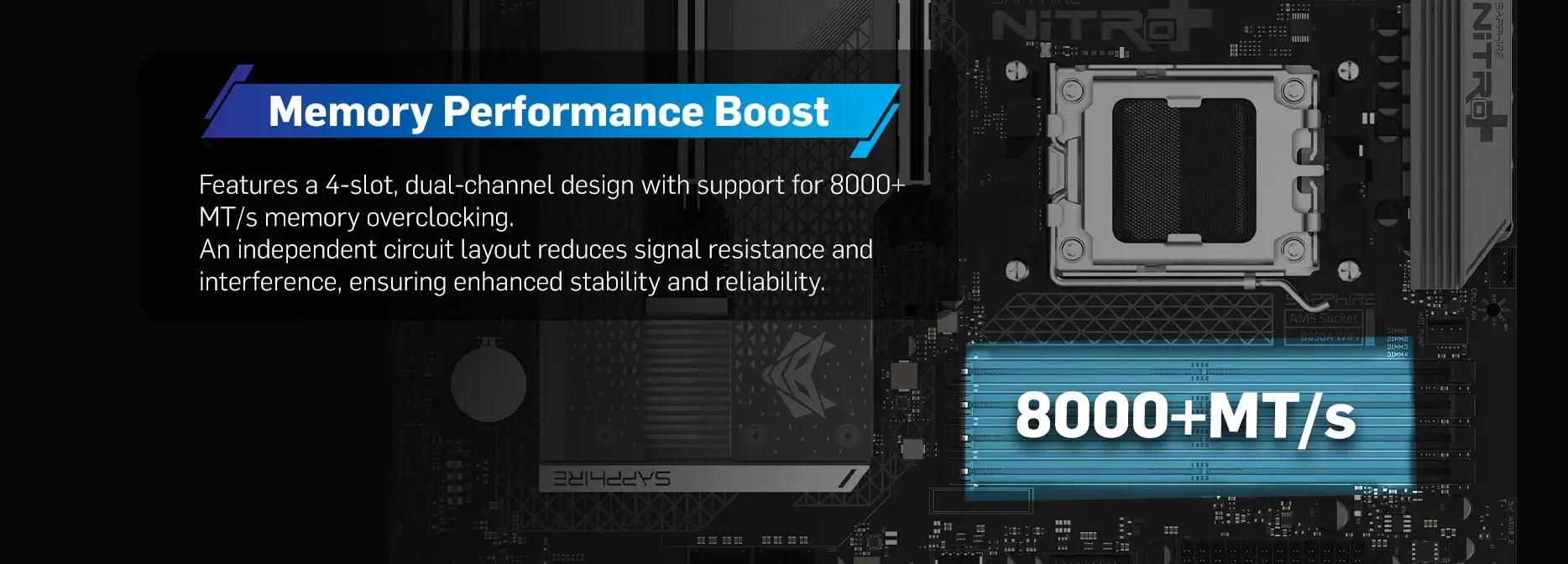

Memory Support | 4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 48GB), up to 8000 MHz(OC) |
PCI-E Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot, 1x PCIe 4.0 x2 in 16x slot |
Display Connector | DisplayPort x1, HDMI x1 |
Audio | Realtek® ALC897 HD Audio, 7.1 Channel |
Network | Realtek® RTL8125BG 2.5 Gigabit Ethernet M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.3 Support |
Front USB Headers | 1x USB 3.2 Gen1 (1 x Type C), 1x USB 3.2 Gen1 (2 x Type A), 1x USB 2.0 (2 x Type A) |

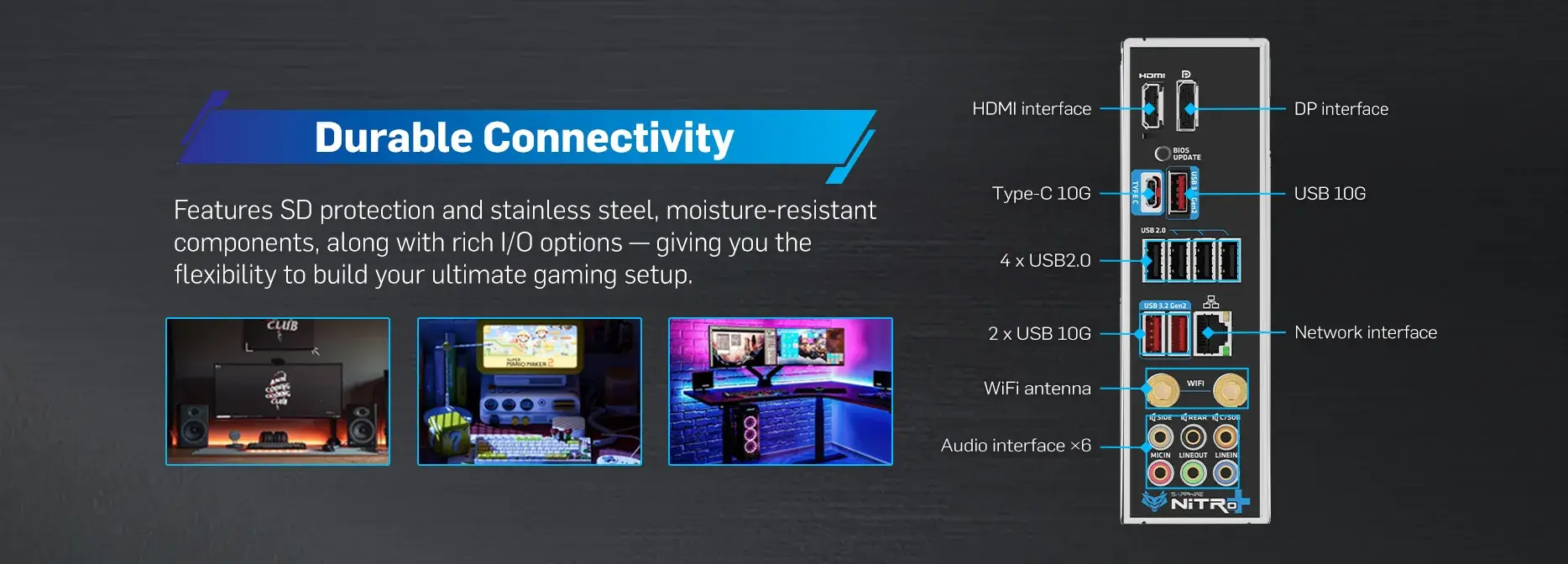

Rear Ports | 1 × DisplayPort, 1 × HDMI ™, 1 × RJ45 LAN, 2 × Wi Fi Antenna One-click Flash BIOS Button, 4 × USB 2.0, 3 × USB 3.2 Gen2 Type A 1 × USB 3.2 Gen2 Type C, 6 × Audio Jacks |

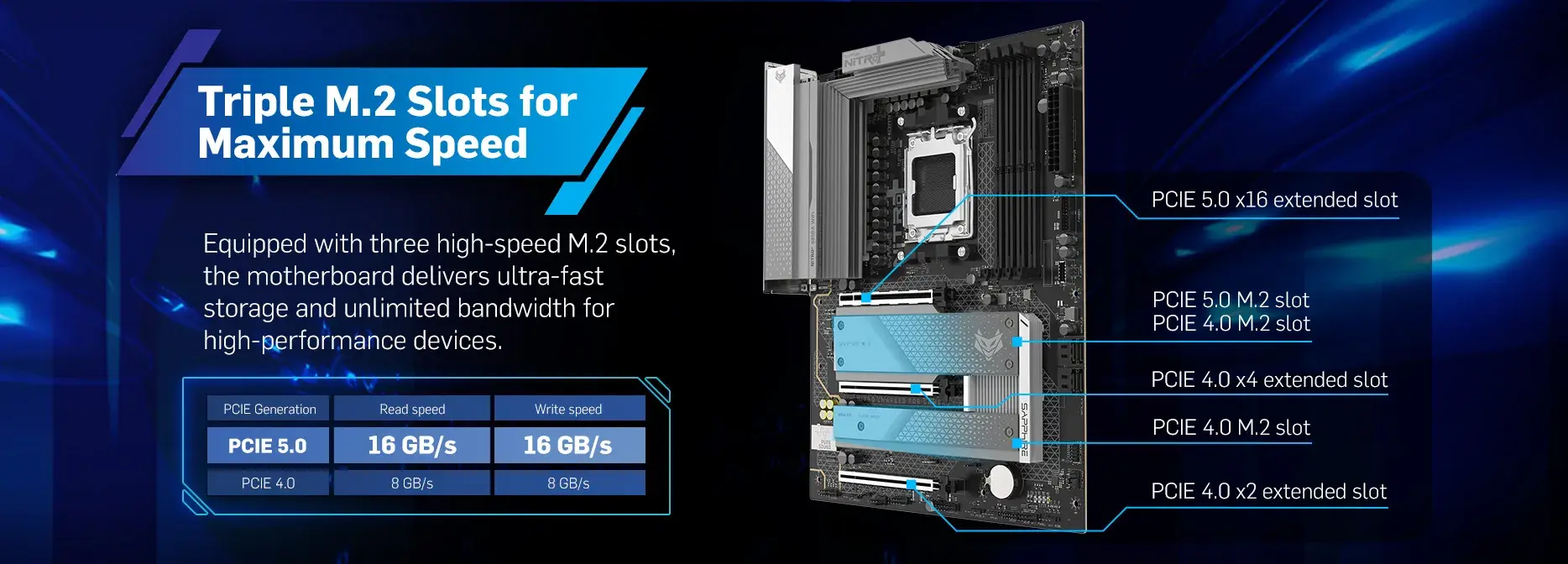

Storage | 1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA |
Kích thước | Micro-ATX, 305x244mm |
Debug LED | DRAM: Yellow, CPU: Red, GPU: White, Boot: Green |
