Chipset: Intel B760.
CPU: Hỗ trợ Intel Core thế hệ 12/13/14.
RAM: 4 khe DDR5, tối đa 256GB, 7800+ MHz (OC).
Đồ họa: HDMI 4K 60Hz, DisplayPort 4K 60Hz.
Guaranteed safe & secure checkout
THÔNG SỐ KỸ THUẬT
CHIPSET | INTEL B760 | |
CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA1700 | |
MEMORY |
| |
ONBOARD GRAPHICS | 1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
EXPANSION SLOT | 1x PCI-E x16 slot Supports x16/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) | |
STORAGE | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G | |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) | |
LAN | Realtek® 2.5Gbps LAN | |
AUDIO | Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output | |
INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) | |
LED FEATURE | 4x EZ Debug LED | |

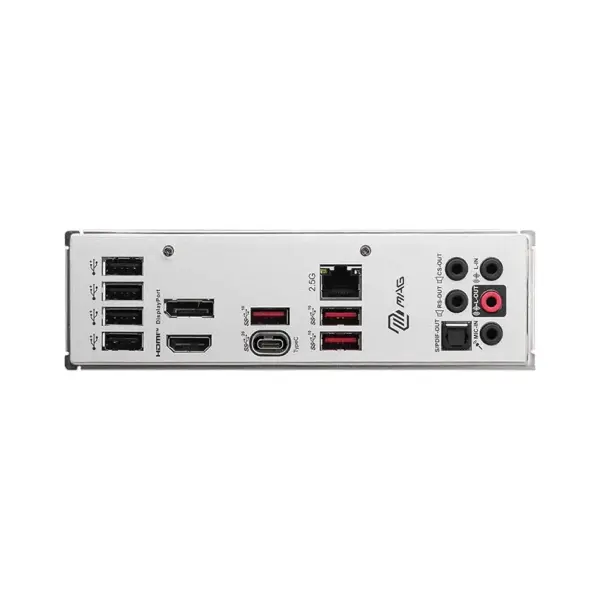

BACK PANEL PORTS |
| |
OPERATING SYSTEM |
| |
PCB DIMENSION | mATX 243.84mmx243.84mm |
