| CHIPSET | INTEL H610 |
| CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700 |
| MEMORY | 2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz
Supports Intel® XMP 2.0 OC
Supports Dual-Controller Dual-Channel mode |
| ONBOARD GRAPHICS | 1x DisplayPort 1.2
1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| EXPANSION SLOT | 1x PCIe 4.0 x16 slot
1x PCIe 3.0 x1 slot |
| STORAGE | M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode)
4x SATA 6Gb/s ports |
| RAID | Not Supports RAID |

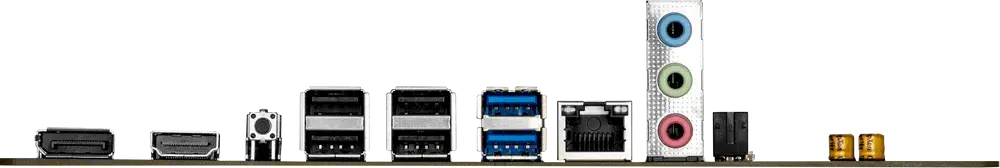

| USB | *Front USB (Total 4 ports)
2x USB 3.2 Gen1 Type A
2x USB 2.0
*Rear USB (Total 6 ports)
2x USB 3.2 Gen1 Type A
4x USB 2.0 |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| AUDIO | Realtek® ALC897 Codec
5.1-Channel High Definition Audio |
| INTERNAL I/O | 1x 24-pin Power Connector(ATX_PWR)
1x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
3x System Fan
1x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x 2-Pin CLR_CMOS
1x 4-Pin BUZZER
1x Front Audio
1x COM_A Port
1x 9-Pin DEBUG_CON
1x TPM pin header(Support TPM 2.0) |
| LED FEATURE | 4x Distributed Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | M-ATX
220mm x 185mm |
