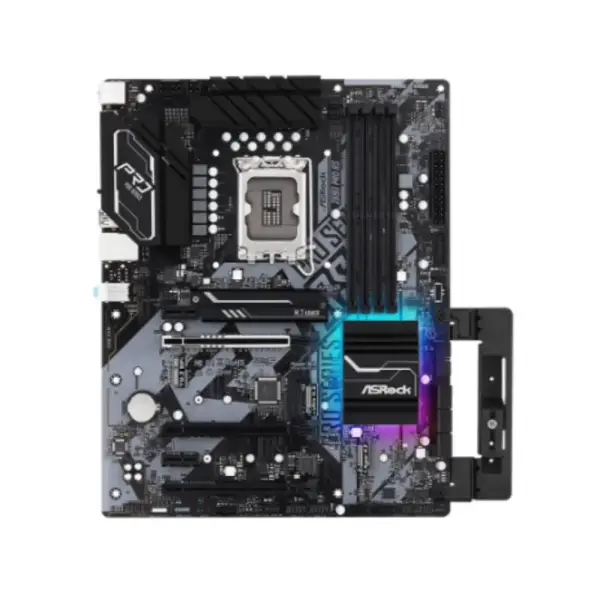

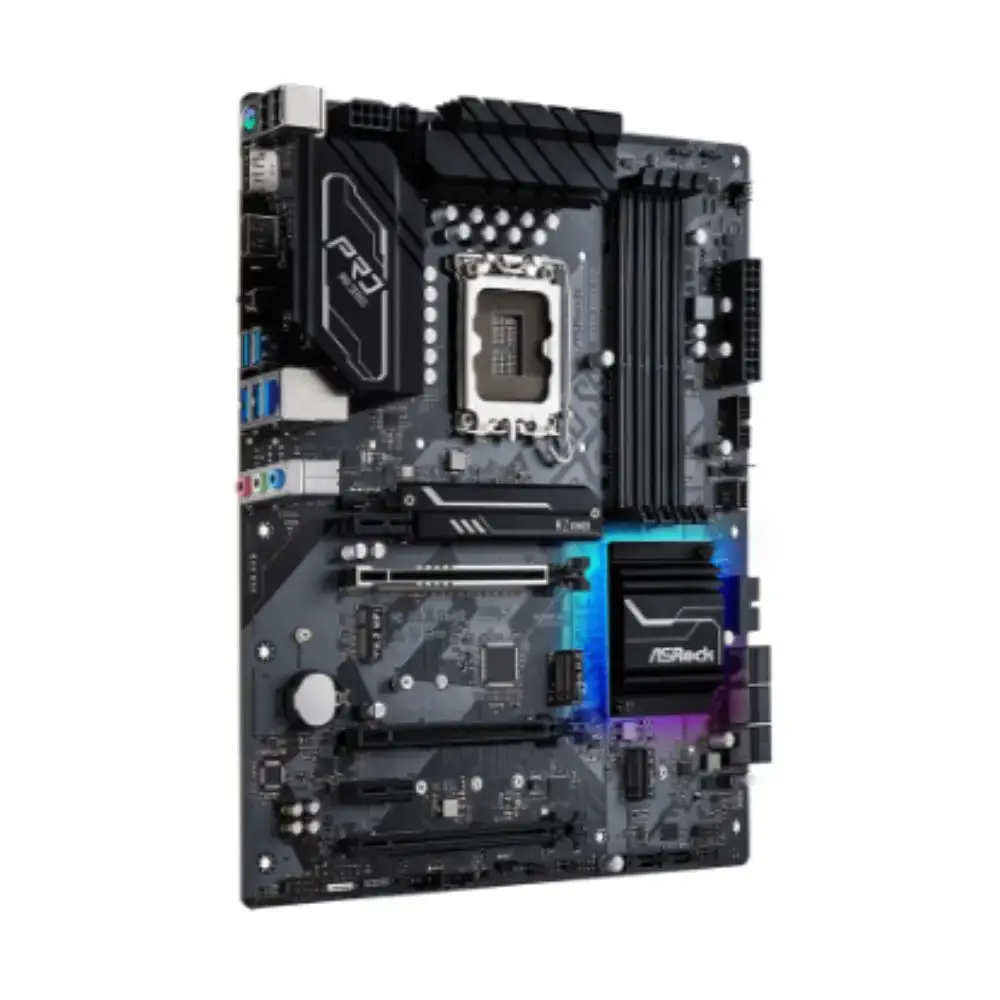

MAINBOARD ASROCK Z690 PRO RS (DDR4)
| Unique Feature | ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy - Premium 60A Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB 2.5G LAN ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|---|---|
| CPU | - Supports 12th Gen Intel® Core™ Processors (LGA1700) - Digi Power design - 13 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | - Intel® Z690 |
| Memory | Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Slots | - 3 x PCIe x16 Slots (PCIE2/PCIE3/PCIE5: single at Gen5x16 (PCIE2); dual at Gen5x16 (PCIE2) / Gen4x4 (PCIE3); triple at Gen5x16 (PCIE2) / Gen4x4 (PCIE3) / Gen3x4 (PCIE5))* - 2 x PCIe Gen3x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
| Storage | - 8 x SATA3 6.0 Gb/s Connectors* - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode** - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes** - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode** |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Connector | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) |

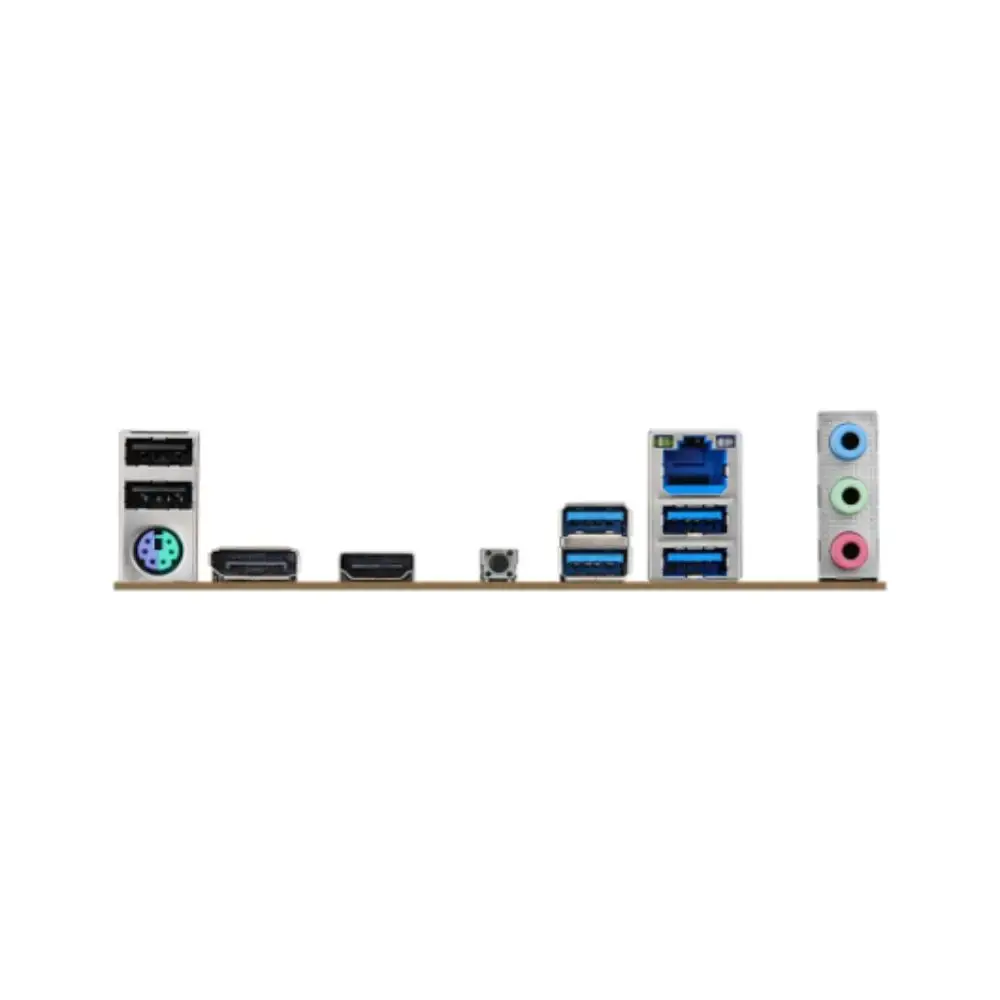

| Rear Panel I/O | - 3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket - 1 x Graphics Card Holder |
| Hardware Monitor | - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: CPU Vcore, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +1.05V PCH, +0.82V PCH, +12V, +5V, +3.3V |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design - 2oz Copper PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) - CEC Tier II ready |
