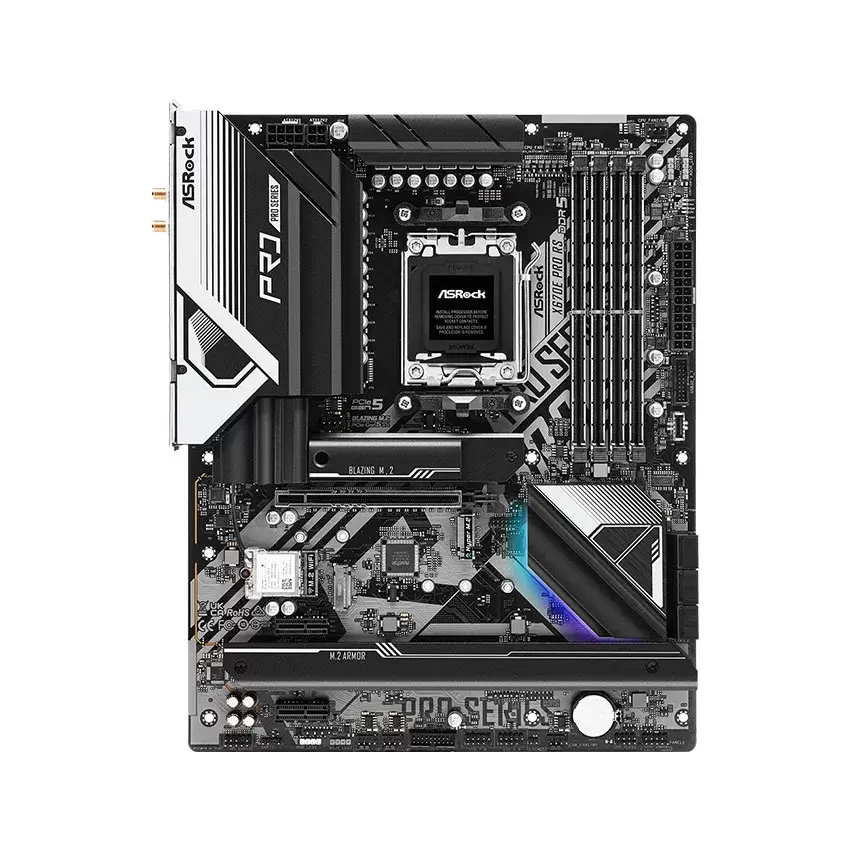

| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asrock |
| Model | X670E Pro RS |
| CPU hỗ trợ | AMD |
| Chipset | AMD X670 |
| RAM hỗ trợ | 4 x DDR5 DIMM slots (tối đa 128GB) |
| Khe cắm mở rộng | CPU: |
| - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| Chipset: |
| - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)* |
| - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Ổ cứng hỗ trợ | CPU: |
| - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* |
| - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Chipset: |
| - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| - 1 x M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* |
| - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| - 6 x SATA3 6.0 Gb/s Connectors |
| Cổng kết nối (Internal) | - 1 x SPI TPM Header |
| - 1 x Power LED and Speaker Header |
| - 1 x RGB LED Header* |
| - 3 x Addressable LED Headers** |
| - 1 x CPU Fan Connector (4-pin)*** |
| - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
| - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
| - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
| - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) |
| - 1 x Front Panel Audio Connector |
| - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
| - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

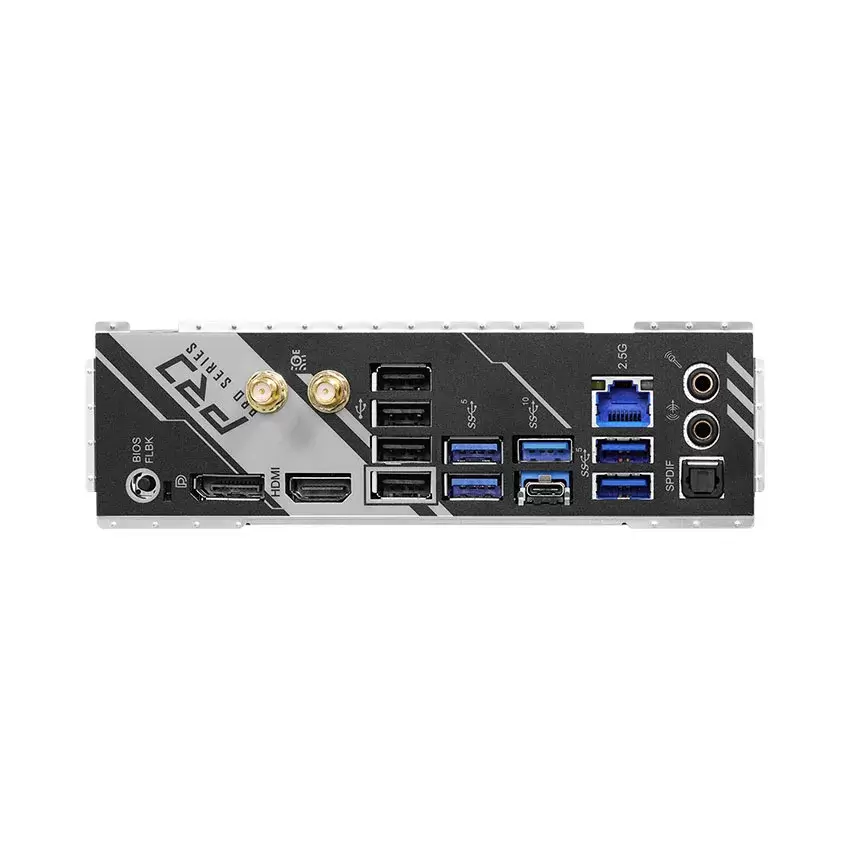

| Cổng kết nối (Rear Panel) | - 2 x Antenna Ports |
| - 1 x HDMI Port |
| - 1 x DisplayPort 1.4 |
| - 1 x Optical SPDIF Out Port |
| - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) |
| - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) |
| - 4 x USB 3.2 Gen1 Ports |
| - 4 x USB 2.0 Ports |
| - 1 x RJ-45 LAN Port |
| - 1 x BIOS Flashback Button |
| - 1 x Line Out Jack (Gold Audio Jack) |
| - 1 x Microphone Input Jack (Gold Audio Jack) |
| LAN / Wireless | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| 802.11ax Wi-Fi 6E Module |

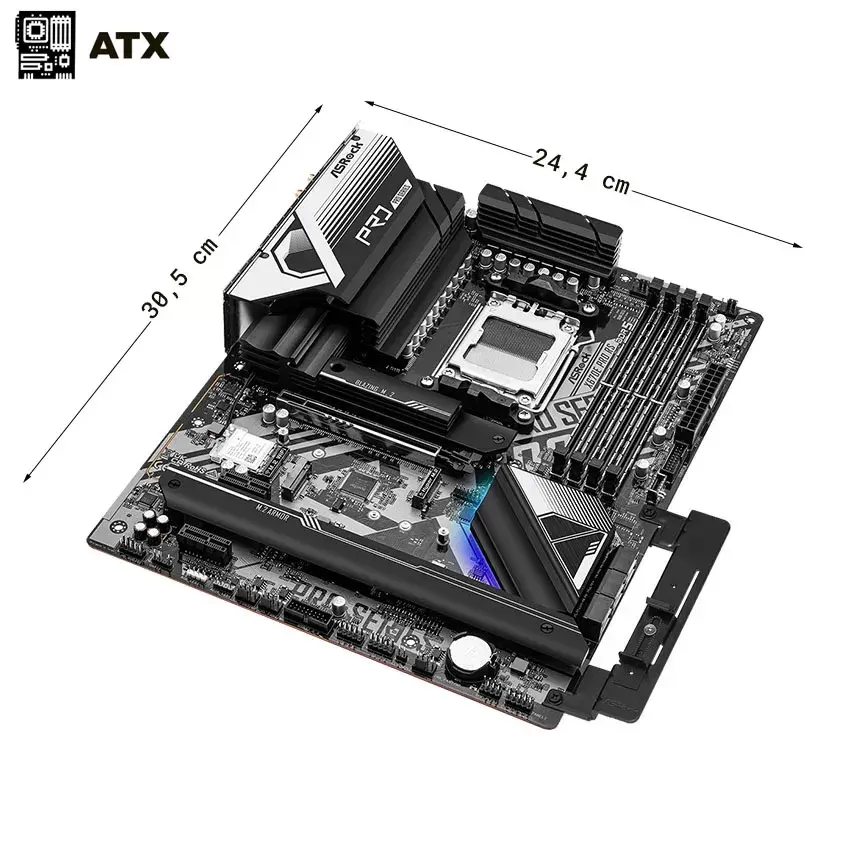

| Kích cỡ | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
